Comparative Study of Decentralized Grid-Forming Converter Controls for Inverter-Based Microgrids

Introduction

Stability and resilience of the electrical power networks is the uttermost priority of the network operators. These cornerstone characteristics of the power systems have been maintained all over the years by huge generation plants that were traditionally dominated by Synchronous Machines (SM) of gigantic inertia reservoir and well-established electromechanical interactions aintaining the synchronization and stiffness of the network. Lately with the gradual retraction of SMs, power converters interfacing IBRs are slowly taking over the role of maintaining this synchronization and stiffness of the network by forming themselves the voltage magnitude and frequency references [1]. In that sense, many grid-forming control strategies are being reported in literature. Droop-based primary control–and its variants–is the most commonly used grid-forming control in networks with parallel operation of inverters such as MGs. This is due to many obvious reasons, such as ease of implementation, resemblance to conventional SMs’ primary control and decentralized power sharing capabilities [2-5]. The recent research on grid-forming controls for voltage source converters presents other novel strategies to control the converters in a grid-forming manner as explained above [6,7]. A wide range of such inverter controls proposed in literature are called the Virtual SynchronousGenerator (VSG).

These controllers emulate some of the SMs’ dynamics to generate the control signals for the converters [1,7]. Others match the converters’ dynamics to that of SMs and prove that the DC-link capacitor voltage dynamics are analogous to the rotational speed in SMs and thus can be utilized to mimic SMs’ synchronization with the grid in what is called the Matching control [8]. Others relied on modelling converters as coupled oscillators and define a control law to synchronize such oscillators using consensus-like dynamics as with the case of Virtual Oscillator Control (VOC) and its dispatchable variant the (dVOC) [9].

The vast majority of these grid-forming controllers deduce the frequency information from the active power imbalance and similarly with the voltage reference signal using knowledge of the reactive power change to maintain parallel loadsharing with other parallel units. In this article, a comparative analysis of these P-f and Q-V dynamics in the previously mentioned GFM controls is carried out and resemblance to the conventional droop functions are highlighted. The contribution of this paper is thus twofold, first by putting the P-f and QV dynamics of the different GFM controllers in the same canonical form, their steady state and transient behavior is proved to be nearly identical by manipulating their different tuning parameters. Second, with that in hand, an equivalent tuning criterion to achieve a certain required behavior by the user is proposed.

Grid-Forming Control Strategies Overview

One of the most frequent control topologies of VSC converters is the cascaded control in dq0-reference frame, in which the inner loops voltage reference (e∗dq0) and the rotational frame angle (θ) is generated by the outer power module where all the GFM controllers–which will be presented here– are applied [6,7,10]. This VSC control topology is the one considered here as shown in Figure 1.

 Droop-Based Control

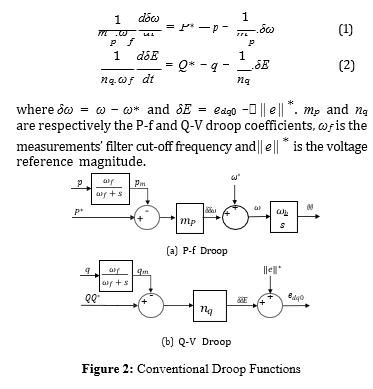

As mentioned before, there exist many variants of the droop control, however, they all share the same basic concept which is to emulate Synchronous Machines’ P-f and Q-V control behavior of decreasing frequency as active power increases or vice-versa. It was first used in microgrids for parallel operation of Uninterruptible Power Supplies (UPS) for its plug-and play and reliable power sharing capabilities. The droop functions considered here are shown in Figure 2 [11]. They can be expressed in time domain as follows:

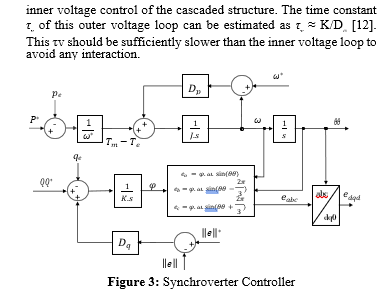

Synchroverter Control

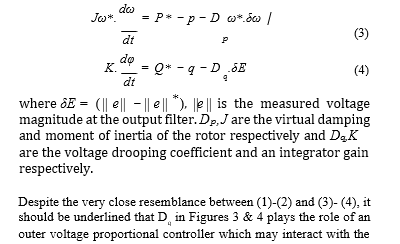

The grid-connected power converters which emulate the steady- state and transient characteristics of Synchronous Generators (SG) are called Virtual Synchronous Generators (VSG). Thereexist different versions of the VSG scheme that differ according to the level of detail and the captured dynamics. However, one VSG version which captures the main SG dynamics without the complexity of SG full order models is the synchroverter model. All the properties of SG can be emulated in the synchroverter control with the advantage of being tunable even in real time operation [12]. The synchroverter upper frequency drooping loop and lower voltage drooping loop shown in Figures 3 & 4 can be reduced tothe following form in time domain

 Dispatchable Virtual Oscillator Control (dVOC)

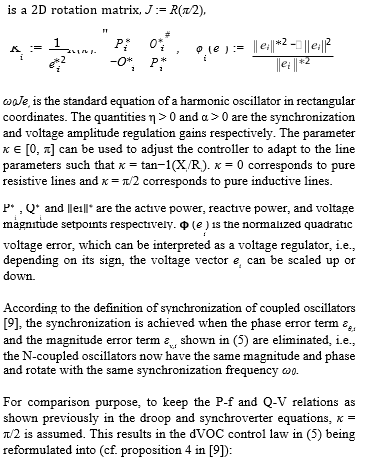

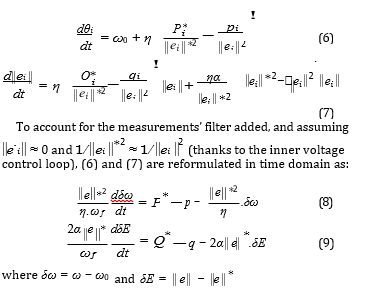

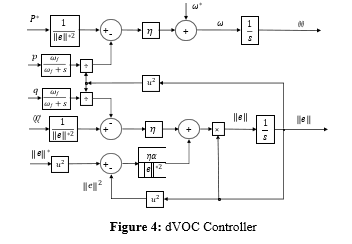

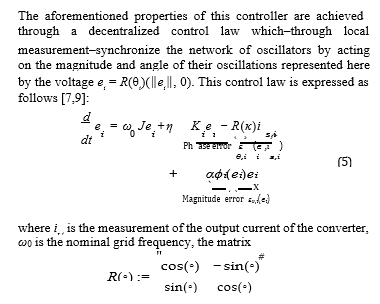

Faster time-domain controllers based on synchronization of coupled nonlinear oscillators are proposed by the Virtual Oscillator Control (VOC) and its modified version with dispatchable active power injections and voltage setpoints (dVOC) [9,13,14]. The original VOC version relied on controlling inverters to behave like virtual Liénard-type oscillators but it was not dispatchable i.e., track references of power injections and voltage references thus was not suitable as a GFM-converter strategy [9,13]. Its dispatchable version (dVOC) proposed in, and presented here (Figure 4) offers a combination of synchronizing feedback and a decentralized magnitude control law for a global phase and magnitude synchronization of coupled oscillators, with respect to setpoints of phase shift, frequency and magnitude [14].

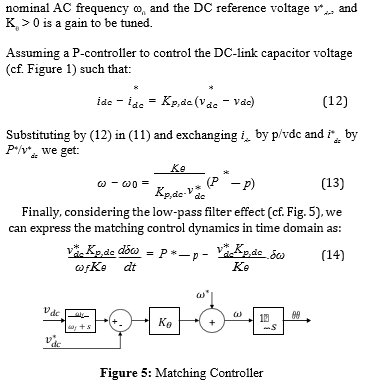

Matching Control

Another analogous control to VSG, is the matching control, which is designed to assure that the closed-loop dynamics of the converter exactly match that of SMs, in the sense that the DC-link capacitor voltage serves as the key control and imbalance signal in a similar fashion as is SM’s rotational speed is an indication of equilibrium between generation and consumption. The objective of this control is thus to mimic the SG’s synchronization with the grid through mimicking its electromechanical interactions{8,15}.

In order to incorporate these dynamics in the control, the angle dynamics of the matching control can be obtained by dynamic feedback of the measured DC voltage as shown in (10) [8], or expressed in relative coordinates as in(11)[7].

Uncovering the Underlying Dynamics

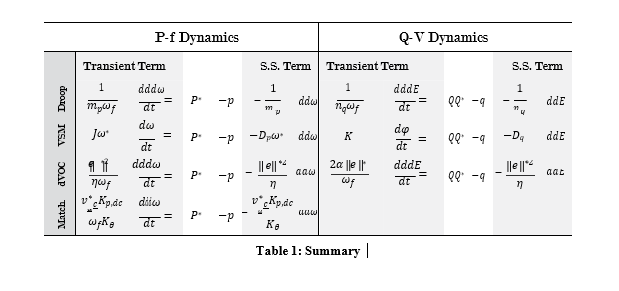

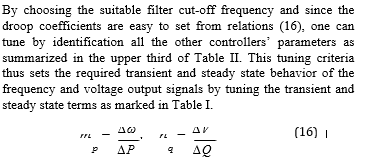

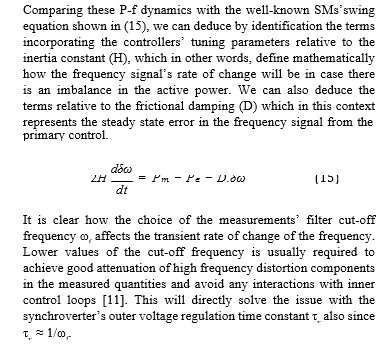

The information on how each controller deduces the rotational electrical frequency (ω) from the change in active power can be concluded from (1), (3), (8) and (14) and is summarized in Table I to highlight the equivalences in dynamics. Similarly, the information on how each controller computes the reference voltage magnitude for the inner control loops from the reactive power imbalance information can be deduced from (2), (4) and (9) and summarized in Table I.

To test and validate the previous claims, the four controllers compared in this paper are implemented in the upper power controller modules of a classic cascaded controlled voltage source converter as previously mentioned. The test network consists of two 10 kVA, 400V (RMS phase-to-phase) VSC converters each connected in parallel through a line to a 10 kW (pure resistive) constant impedance load (≡ 14.52Ω per phase) as shown in Figure 1. A load step increase of +0.33 p.uis simulated at t=1.5s and decreased back to normal again at t=2.5s to compare the P-f and Q-V dynamics of the different controllers. The equivalent tuning of the different controllers’ parameters according to the established criteria and equivalent dynamic equations is shown in Table II.

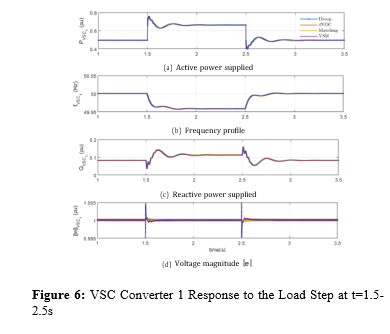

Figures 6a, 6b show the active power supplied by the first converter and the deduced frequency signal respectively. It could be noticed how the rate of change of frequency (ROCOF) as well as the steady state frequency value is quasi-identical by all the different controllers which validates the previously derived P-f dynamic equations and the respective tuning in steering the P-f dynamics to behave in a controlled and droop-equivalent manner. In a similar fashion, Figures 6c,6d show the reactive power supplied by the same converter and the measured voltage magnitude at the capacitor filter. Again, quasi-identical voltage and reactive power

dynamics are spotted which validates by its turn the aforementioned proposed equivalence of the Q-V dynamics between the different controllers and the validity of the tuning criteria in controlling the Q-V behavior according to user preferences.

This configuration and results were tested in a wide range of the feasible values of the droop coefficients while respecting the same tuning method and again the same conclusions were obtained. On the other hand, choosing other non-equivalent values for the tuning parameter, each controller starts to behave differently and the quasi-identical dynamics start to deviate. Which further validates the analysis conducted here

Conclusion

In this article the embedded droop-like dynamics of the four major grid-forming controllers proposed for VSCs in literature, namely the Droop, dVOC, Synchroverter and Matching are compared and the underlying equivalences are highlighted and then utilized to achieve equivalent tuning of the controllers’ dynamics to obtain equivalent P-f and Q-V relationships. It could be deduced how– regardless of the different control architecture and different tuning parameters–they can all be reduced to the very similar dynamics and thus by identification their different parameters can be tuned equivalently to the well-known Droop coefficients.

The derived dynamic equations and the resulting tuning method guarantee equivalent parallel active and reactive load power sharing, controlling the rate of change of the deduced frequency and voltage signals and their steady state values as well as being intuitive, easy to implement and representative of the physical meaning of each tunable value of the different controllers. However, the utilization and generalization of this approach in studying the limits of stability of the individual controllers needs further research.

References

1. Milano, F., Dörfler, F., Hug, G., Hill, D. J., & VerbiÃÂ?, G. (2018, June). Foundations and challenges of low-inertia systems. In 2018 power systems computation conference (PSCC) (pp. 1-25). IEEE.
2. Guerrero, J. M., Chandorkar, M., Lee, T. L., & Loh, P.C. (2012). Advanced control architectures for intelligent microgrids—Part I: Decentralized and hierarchical control. IEEE Transactions on Industrial Electronics, 60(4), 1254- 1262.
3. Rocabert, J., Luna, A., Blaabjerg, F., & Rodriguez, P.(2012). Control of power converters in AC microgrids. IEEEtransactions on power electronics, 27(11), 4734-4749.
4. Han, Y., Li, H., Shen, P., Coelho, E. A. A., & Guerrero, J. M. (2016). Review of active and reactive power sharing strategies in hierarchical controlled microgrids. IEEE Transactions on Power Electronics, 32(3), 2427-2451.
5. Han, H., Hou, X., Yang, J., Wu, J., Su, M., & Guerrero, J.M. (2015). Review of power sharing control strategies for islanding operation of AC microgrids. IEEE Transactions on Smart Grid, 7(1), 200-215.
6. Tayyebi, A., Groß, D., Anta, A., Kupzog, F., & Dörfler, F. (2020). Frequency stability of synchronous machines and grid-forming power converters. IEEE Journal of Emerging and Selected Topics in Power Electronics, 8(2), 1004-1018.
7. U, M. Taouba. Jouini., and D, Groß. (2018).“MIGRATE Project – Deliverable 3.3: New options for existing system services and needs for new system services,” Tech. Rep.
8. Arghir, C., Jouini, T., & Dörfler, F. (2018). Grid-forming control for power converters based on matching of synchronous machines. Automatica, 95, 273-282.
9. Colombino, M., Groß, D., Brouillon, J. S., & Dörfler, F. (2019). Global phase and magnitude synchronization of coupled oscillators with application to the control of grid- forming power inverters. IEEE Transactions on Automatic Control, 64(11), 4496-4511.
10. X, K. Taoufik. Qoria., Quentin, Cossart., Chuanyue, Li., Xavier, Guillaud., Frederic, Colas., et al. (2018). “MIGRATE Project - Deliverable 3.2: Local control and simulation tools for large transmission systems,” MIGRATE Project, Tech. Rep.
11. Pogaku, N., Prodanovic, M., & Green, T. C. (2007). Modeling, analysis and testing of autonomous operation of an inverter- based microgrid. IEEE Transactions on power electronics, 22(2), 613-625.
12. Zhong, Q. C., & Weiss, G. (2010). Synchronverters: Inverters that mimic synchronous generators. IEEE transactions on industrial electronics, 58(4), 1259-1267.
13. Johnson, B., Rodriguez, M., Sinha, M., & Dhople, S. (2017, July). Comparison of virtual oscillator and droop control. In 2017 IEEE 18th Workshop on Control and Modeling for Power Electronics (COMPEL) (pp. 1-6). IEEE.
14. Seo, G. S., Colombino, M., Subotic, I., Johnson, B., Groß, D., & Dörfler, F. (2019, March). Dispatchable virtual oscillator control for decentralized inverter-dominated power systems: Analysis and experiments. In 2019 IEEE Applied Power Electronics Conference and Exposition (APEC) (pp. 561- 566). IEEE.
15. Arghir, C., & Dörfler, F. (2019). The electronic realization of synchronous machines: Model matching, angle tracking, and energy shaping techniques. IEEE Transactions on Power Electronics, 35(4), 4398-4410.
