Synthesis of Co-Doped and Triple-Doped Cerium Oxide Using a Sol Gel Procedure as Electrolyte of Solid Oxide Fuel Cell

Introduction

Green energy generation using environmentally safe and reliable technologies such as fuel cells, solar calls, thermoelectric effects and wind turbines is increasingly received great attention from both research and industry aspects. Without any pre-combustion, a solid oxide fuel cell (SOFC) integrates the oxidized hydrogen and/ or natural gas on the anode and the reduced oxygen on the cathode using electrolyte component through electrochemical processes to produce energy and heat [1,2].

A SOFC could also be combined with other energy resources such as solar energy to construct a multifunctional system with higher energy conversion efficiency [3]. In addition, SOFC technology is found reliable especially due to fuel flexibility and promising for efficient energy conversion even at temperatures lower than 650oC [4,5,6]. However, further development for SOFCs is required to become efficient as compared with other energy resources such as traditional fossil fuels [7]. A typical SOFC is integrated from anode, cathode, and electrolyte and interconnect components. Great ongoing interdisciplinary research interests are attracted by all the components aiming to enhance the performance efficiency of SOFC [8-14].

To be compatible with other components, all the components required to fulfill some particular physical, electrochemical and mechanical criteria [1]. For an instance, potential electrolyte materials need to fulfill qualities such as displaying high ionic conductivity, suitable gas tightness for separating air and fuel gas, chemical stability, thermal shock resistance and thermal expansion compatibility with electrodes and interconnect materials [15, 16]. Yttria-stabilized zirconia (YSZ) and CeO2 materials are commonly studied as electrolyte of SOFCs [17-21].Various synthesis procedures of CeO2 materials are reported in literatures [22-28]. In addition, different strategies including cerium site doping via appropriate elements are adopted to enhance its properties as ion- exchanger interface [16,20,23,29]. In this work, we have used a sol gel method to synthesize co-doped and triple-doped CeO2 materials.

Experimental

The starting chemicals including Ce(NO₃ )₃ .6H₂O (98.5%), Sr(NO₃ )₂ (99%), CaCO₃ (99%), Sm₂ O₃ (99.9%), Ethylenediaminetetraacetic acid, disodium salt dihydrate (EDTA, C₁₀H₁₄N₂ O₈ . 2 Na.2H₂ O), citric acid (C₆ H₈ O₇ , 99%), NH3 (30%) and Deionized-water (Di- water) were used for synthesizing doped CeO₂ materials using a sol gel procedure. In the reaction, 1mmol of Ce(NO₃ )₃ .6H₂ O and 1 mmol of EDTA was dissolved into sufficient amount of Di-water via stirring on a hot plate stirrer. All the other chemicals were separately dissolved into Di-water. Noteworthy the total amount of 310 mL Di-water was consumed for Sm free samples, while for the samples that contained Sm, 280 mL of Di-water was consumed. The obtained solutions were added dropwise to the EDTA solution, while being stirred at room temperature. It is worth of mention that the pH values were raised via sequentially adding NH₃ to the solution. The pH value of all the solutions was adjusted to 8.5.

Then, the temperature was raised to 85o C and stirring was continued until the precipitate became highly viscose. The stirring speed was initially set to 1000 rpm and decreased sequentially to 700 rpm upon raising the viscosity of the gel. The obtained clay was then kept on the same hot plate and heated up toabout170o C for further drying. At higher ratio of citrate to nitrate (usually 0.5- 0.7), the gel would swell and burn during the drying procedure; it is commonly known as auto combustion process [22, 30]. We observed that the gel would only swell without any auto combustion when the citrate to nitrate ratio was about 0.3. During the initial steps of the present reactions the ratio is set to 0.3. The dried clay was then collected and was partially ground using an agate mortar.

To get more homogeneous particles, the powder was transferred into a ball mill apparatus and milled for 5h. The obtained powder was then collected and heated up to 700o C with the rate of 1o C/min into an alumina cup and kept at this temperature for 4h. The obtained powder was then cold pressed into pellets at 1100 psi and in turn was sintered at 1400o C for 4h inside a box furnace with the heating rate of 2.2o C/min. The crystal structure of as-synthesized materials was examined using powder x- ray diffraction (XRD) pattern (X’Pert, Philips) equipped with cobalt radiation source (Cokα).

The micromorphology of the sintered samples was investigated using a field emission scanning electron microscope (FE-SEM) technique (TeScan, MIRA II LMU). The energy dispersive x-ray spectroscopy (EDS) was used for elemental analysis of the title samples using the same apparatus. The lattice constant of the doped CeO₂ was refined from the obtained XRD data.

Results and Discussion

The XRD of the samples that were sintered at 1400o C for 4h in air. The patterns labeled with

(a)and(b) demonstrate XRDof Ce_0.9385Na_0.0015Ca_0.05Sr_0.01O₂ and Ce_0.9285Na_0.0015Ca_0.05Sr_0.02O₂ samples that have illustrated pure phase of CeO₂ structure, space group Fm3m (225). The XRD patterns that are labeled with (c) and (d) demonstrate the crystal structure of Ce_0.8478Na_0.0022Sm_0.15O₂ and Ce_0.7978Na_0.0022Sm_0.20O₂ samples, respectively. For further identification, the XRD patterns are extended in the vicinity of 2θ= 39 degrees, as shown in Fig (1). The relative peak shift is apparent which could be attributed to the insertion of dopants into the cerium sites of CeO₂ system. As the inset illustrates, the peaks are shifted to lower angles in a systematic trend of increasing the concentration of Sr and Sm dopants. Apparently, the maximum peak shift is occurred for Ce_0.7978Na_0.0022Sm_0.20O₂ sample, while the peaks of Ce_0.9385Na_0.0015Ca_0.05Sr_0.01O₂ are shifted the least, which agrees with the total doping contents of each sample.

The CeO₂ peaks are indexed using miller indices (hkl). There coexists impurity phase of SmAlO₃ system in the pattern of Na and Sm co-doped CeO₂ (highlighted by asterisk) samples. The SmAlO3 impurity phase is arisen from the reaction of Al and Sm elements at high temperatures. The Al element might have been extracted from the Alumina cup (Al₂ O₃ ) in which the samples were loaded for sintering. This could have led some structural Ce site deficiencies, which would affect the physical properties of the codoped CeO₂ materials.

However, the influence of SmAlO₃ impurity on the desired physical properties could be important. It could be speculated that substitution of Ce with single or de-valance elements would enhance the ion-exchange mechanism in CeO₂ electrolyte of a SOFC as a result of created structural pathways in due to oxygen deficiencies [5, 16]. The most intense peak of SmAlO₃ phase isoccurred around 2θ= 39.6o . Apparently, the intensity of the impurity peaks is enlarged upon increasing the Sm content, as shown in Figure 1.

Figure 1: XRD patterns of doped CeO2 materials; (a) Ce0.9385Na0.0015Ca0.05Sr0.01O2, (b) Ce0.9285Na0.0015Ca0.05Sr0.02O2,(c) Ce0.8478Na0.0022Sm0.15O2 and (d) Ce0.7978Na0.0022Sm0.20O2 samples.

The intense peaks of SmAlO3 impurity phase in patterns (c) and (d) are denoted with asterisk (*) symbol. hkl indices denote the CeO₂ phase. Inset shows the extended XRD patterns in the vicinity of 2θ = 39 degrees.

The variation of lattice constant as a function of the total doping content of Na,Ca, Sr and Sm doped CeO₂ structure was estimated The obtained results show the enlargement of the lattice constant of doped CeO₂ structure with increasing the total doping concentration for all the samples except that for Ce_0.9385Na_0.0015Ca_0.05Sr_0.01O₂, which is in agreement with other reports [16,20,30,31].

The variation of the lattice constant could mainly be attributed to the ionic radius of the Na, Ca, Sr and Sm dopants, which are all larger than Ce⁴⁺,as shown in Fig(2).

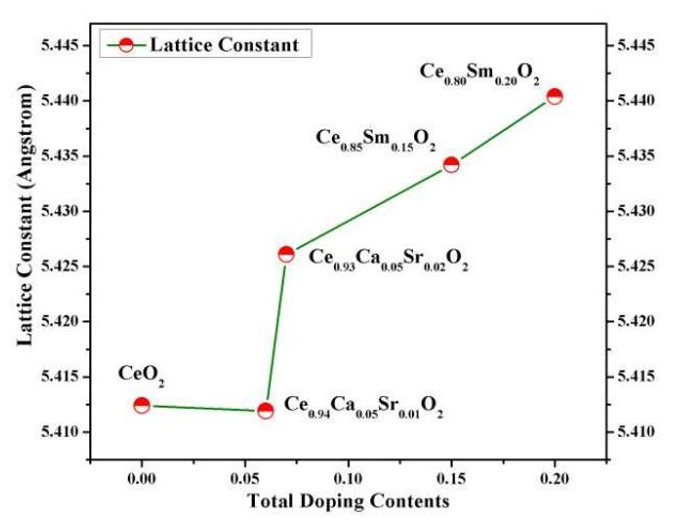

Figure 2: Variation of lattice Constant of CeO₂ vs. The Total Doping Contents of Na, Ca, Sr and Sm Elements.

The FE-SEM from the surface of the co-doped and triple-doped particles (about 50 nm) on the grains of the microsized particles of CeO₂ samples sintered at 1400oC were performed. The porous those triple-doped CeO₂ samples. These nanosized particles could structure is apparent from the micrographs. The particle size ranges approximately between 500 nm and 6 µm for all the samples. In addition, there exist some randomly distributed nanosized efficiently affect the physical properties of the material, as shown in Figure 3.

Figure 3: FE-SEM Micrographs for doped CeO2 Materials; (a) Ce 0.9385 Na 0.0015 Ca 0.05 Sr0.01O2, (b) Ce 0.9285 Na 0.0015 Ca 0.05 Sr 0.02 O2, (c) Ce0.8478 Na 0.0022 Sm 0.15O2 and (d) Ce 0.7978 Na 0.0022 Sm 0.20O2 Samples.

The EDX elemental analysis is typically performed for Ce_0.9385Na_0.0015Ca_0.05Sr_0.01O₂ sample. The obtained results confirm the coexistence of Na, Ca, Sr, Ce and O elements in the title material, as shown in Figure 4.

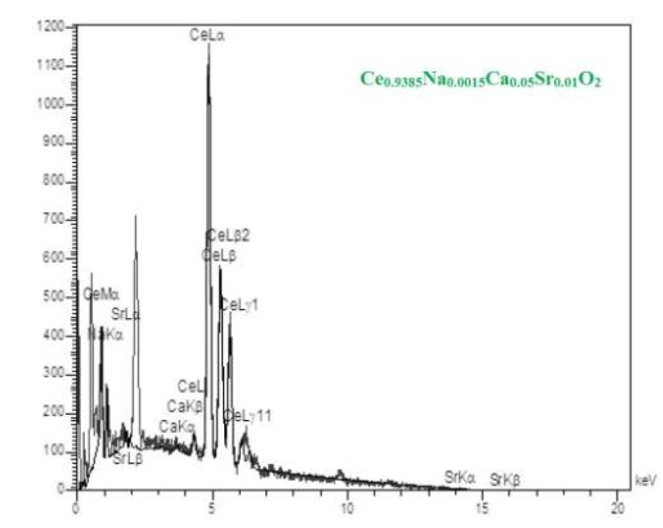

Figure 4: The Typical EDX Elemental Analysis Obtained for Ce 0.9385 Na 0.0015 Ca 0.05 Sr 0.01 O2 sample

Conclusion

CeO₂ was co-doped and triple-doped via various elements including Na, Ca, Sr and Sm through a sol gel procedure. The fabrication of pure phases of Na, Ca and Sr triply-doped CeO₂ system is confirmed via XRD analysis. For the Na and Sm co-doped samples,the impurity phase of SmAlO₃ is observed in the XRD pattern. The formation of SmAlO₃ phase is attributed to the extracted Al element from the structure of Alumina cup at high temperatures.

The results of lattice constant refinement show it is enlarged for all the samples except that of Ce_0.9385Na_0.0015Ca_0.05Sr_0.01O₂. The enlargement of the lattice constant is attributed to the larger ionic radius of the present dopants than that of Ce⁴⁺. The typical elemental analysis using EDX confirms the coexistences of Na, Ca, Sr, Ce and O elements in the material, as expected.
