Finite Element Analysis of Proximal Femoral Nail Anti-Rotation Blade Combined with Cerclage Wire Fixation for Osteoporotic Subtrochanteric Fracture

Introduction

is highly vulnerable to bone fracture because of the decrease in bone density and quality, destruction of the bone microstructure, and an increase in the bone fragility. Most of the osteoporotic sub-trochanteric fractures are unstable in nature, requiring the conser-vative treatment of a long-duration bed rest and traction; this con¬dition is prone to complications resultant from extended bed rest, often leading to death. Presently, the preferred treatment is internal fixation, such as sliding hip screws, blade plates, locking compres¬sion plates, and femoral intramedullary nails [1-8]. Owing to its valuable biological properties, intramedullary nail can be used for the optimal fixation of subtrochanteric fractures [9-11]. Unless any contraindication exist, immediate tolerable weight-bearing activi¬ties may be allowed to patients with subtrochanteric femur frac¬tures who have been treated with statically locked intramedullary nails [12]. Considering that the proximal femoral fracture occurs under the traction of the surrounding muscles, it is extremely chal¬lenging to perform precision reduction and fixation in the surgery. Inappropriate reduction and selection of internal fixation can eas¬ily lead to failure of internal fixation, resulting in complications such as lower limb shortening deformity, hip varus deformity, and nonunion of fracture. Presently, good outcomes have been re-ported with the use of PFNA combined with cerclage wire for the treatment of subtrochanteric fracture of the femur [13-15]. There are few studies to help decide whether PFNA should be combined with cerclage wire or used alone according the Seinsheimer classi-fication of subtrochanteric fractures. Compared with the conventional biomechanical analyses, finite el¬ement analysis offers the characteristics of various loading modes, multiple test indexes, intuitive experimental results, low research cost, short test cycle, and application in dynamic analysis. In the recent years, the finite element method has been widely applied in the medical field, especially in the field of traumatic orthopedics. In addition, it has been widely used for the optimization and de¬signing of hip prosthesis to assess the risk of femoral neck fracture as well as for the prognosis evaluation of internal fixation treat¬ment [16-18].

In this study, we employed the finite element method to evalu¬ate the stability and necessity of fixation by PFNA in combination with cerclage wire with reference to the Seinsheimer Classification of femoral subtrochanteric fractures in the osteoporotic subtro¬chanteric fracture and to comprehend the probability of potential complications.

Materials and Methods

Three-Dimensional(3D) Models The research protocol was in accordance with the Helsinki Dec¬laration and duly approved by the Research Ethics Committee of our institution. Written pre-informed consent was obtained from healthy volunteers for their participation in the study.

A 70-year-old healthy volunteer (height: 170 cm, weight: 63 kg) was scanned by the 64-row Siemens spiral CT in the Jincheng General Hospital. The scanning range was from the iliac to the knee joint. The patient was kept in the supine position, with bi¬lateral toes forward, and the posture was maintained consistently with the standing posture on both the legs. The slice thickness was 1 mm, and the images were stored in the DICOM format.

CT data in the DICOM format were imported to the Mimics Re¬search 20.0 Software (Materialise Belgium). After setting the threshold, generating and editing masks, and filling and smooth¬ing, 3D models of the whole and cancellous of the left femur were generated and stored in the STL format.

Next, the femur data was imported to the Geomagic Studio 2014 Software (Raindrop, USA) to remesh, remove spikes, smoothen, extract surfacing, detect and edit contours, construct patches, and fit the surface. The resultant optimized 3D model of the left femur and cancellous bone was obtained, and the relevant IGS file was exported.

The IGS files of the femur whole and cancellous bone were im-ported to the SolidWorks 2019 and saved. A new assembly was then created and used in the origin coincidence command to combine the two entities. Next, the part mode was entered and the combination was used to give deletion commands in order to construct the femoral cancellous bone and the cortical bone model. The constructed elements were saved in the SLDPRT file format after reconstruction.

We employed the SolidWorks 2019 (Dassault Systems, USA) soft-ware to draw the PFNA-II Asian Internal Fixation System. The commands of stretch, cut, loft, array and fillet were used to re-construct the PFNA nail, spiral blade, and distal locking screw. The PFNA nail length was 170 mm, and the valgus angle was 5 degrees. The screw blade length was 100 mm, the diameter was 10.5 mm, and the neck stem angle was 125 degrees. The elements were saved as the SLDPRT file after reconstruction.

In the SolidWorks 2019, the left femur and PFNA were assembled according to the standard surgical techniques. We confirmed that the Tip-apex distance was ≤25 mm, the spiral blade was located in the mid-lower portion of the femoral neck, and the main nail was in a 3-point contact with the femoral cortex, albeit it did not pen¬etrate. The elements were saved in the SLDPRT file format after reconstruction. With reference to the Seinsheimer Classification system of sub-trochanteric fractures, the fracture types â?¡B, â?¡C, â?¢A, â?¢B, and â?£ fractures were constructed. Two types of â?¡C fractures were constructed according to the relative position of the spiral blade and fracture lines. All types of fractures were placed with cerclage wires based on the fracture conditions. The resultant elements were saved in the SLDPRT file after construction (Photo 1).

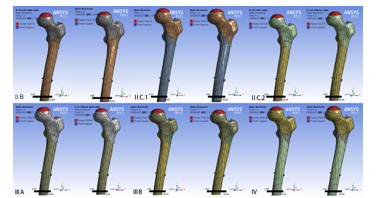

Photo 1: Different models of subtrochanteric fractures ac¬cording the Seinsheimer classification of subtrochanteric fractures.

Finite Element Analysis of the Model

The assembly of the femur and internal fixation in the SLDPRT format was imported to the ANSYS Workbench 19.1 (ANSYS INC, USA). The mesh command was used to create the mesh, fol¬lowed by mesh quality check. After meshing, a total of 152455 elements and 246827 nodes were generated in the femoral model. The PFNA model generated 113423 elements and 176018 nodes. The number of elements and nodes generated by other fixed mod¬els were slightly different. Convergence tests were performed on all models to verify that element discretization was sufficient for the stress analysis.

The material properties of PFNA internal fixation and the femur were set to isotropy. The property of PFNA internal fixation ma¬terial was set as titanium alloy (elastic modulus of the osteoporot¬ic cortical bone: 110000 MPa, Poisson’s ratio: 0.35) [19-23]. The property of cerclage wire material was set as structural steel. The femoral cortex and cancellous material were set as suggested by previous literature (elastic modulus of osteoporotic cortical bone: 15000 MPa and Poisson’s ratio: 0.3, elastic modulus of osteoporo¬sis cancellous bone: 105 MPa and Poisson’s ratio: 0.37) [24-28]. The friction coefficient between the bones was set to 0.46, that between the bone and internal fixation was set to 0.3, and that be¬tween internal fixation was set to 0.23 [29, 30].

In this study, only the force of the acetabulum on the femoral head was considered. The force was linearly loaded along 10 degrees to the long axis of the femoral shaft and perpendicular to the spher¬ical surface of the femoral head in the anteroposterior view. Past researchers have reported approximately 230% body weight when standing on one leg [31, 32]. The femoral head was loaded with a 1420-N force. Partial resection of the distal femur reduced the amount of computation. the distal end of the model was fixed. Fi¬nally, we conducted finite element analysis and assessed the risk of fracture surface sliding, spiral blade cutting-out, the nail and distal lock screw fragmentation on different models

Results

Model Validation

In order to confirm the validity of the model, a complete femoral model was employed. The material property was assigned to normal cortical and cancellous bone. An axial force of 1500 N was applied to the femoral head. The stress was mainly distributed in the medial-upper portion and the posterolateral-lower portion of the femur, in accordance with the physiological distribution of the human body [33]. The axial stiffness obtained was 0.74 kN/mm, which conforms to that obtained in previous experiments (0.76 ± 0.26 kN/mm) [34].

Total Deformation Distribution

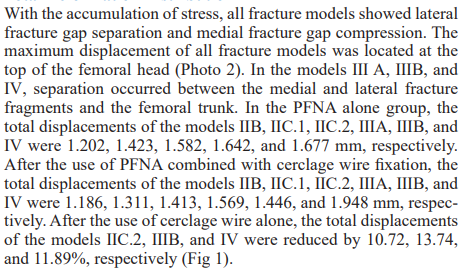

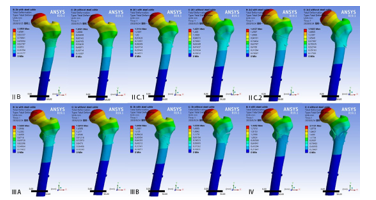

Photo 2: The nephogram of deformation Distribution

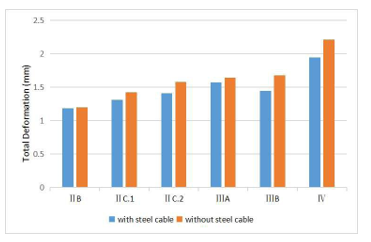

Figure 1: Total deformation distribution between groups.

Sliding Distance of the Fracture Surface

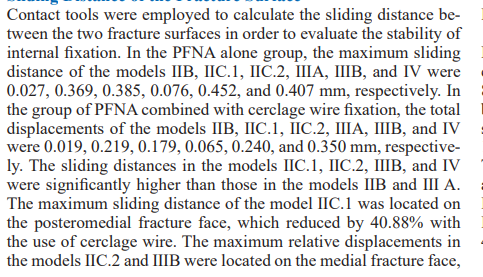

which were reduced by 53.48% and 46.71% with the use of cer¬clage wire. The maximum sliding distance of the model in the anteromedial fracture face was reduced by 14.14% with the use of cerclage wire (Photo 3) (Fig 2).

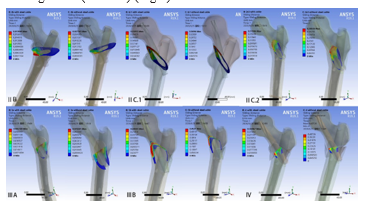

Photo 3: The nephogram of fracture surface sliding.

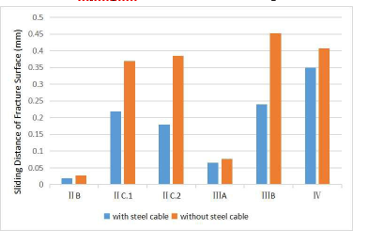

Figure 2: Max fracture surface sliding between groups.

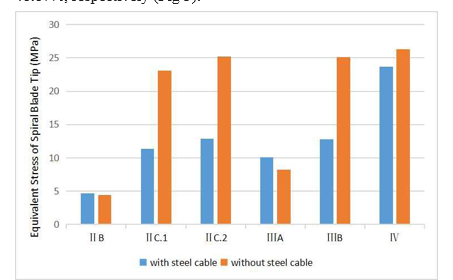

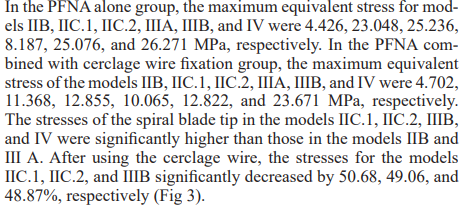

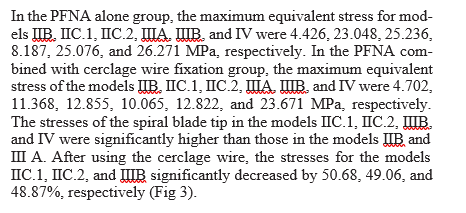

Figure 3: Equivalent Stress of Spiral blade tip between groups.

The Relative Displacement between the Spiral Blade and Fem-oral Head in Y-axis

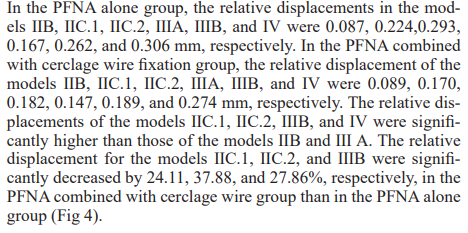

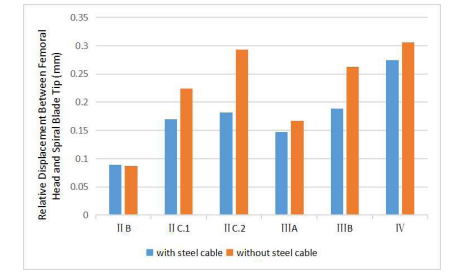

Figure 4: The relative displacement between the spiral blade and femoral head in Y-axis between groups.

Equivalent Stress Distribution of Nails

The equivalent stress distribution area of a nail mainly included the inner and outer portions of the upper-middle region, around the nail-spiral blade interface, and at the distal nail-locking screw interface. The maximum equivalent stress of the model â?¡b with cerclage wire was distributed across the upper surface of the nail-blade interface. The maximum stress of other models was distrib¬uted on the lower surface of the main nail blade interface (Photo 4).

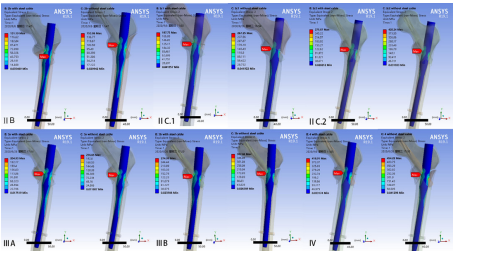

Photo 4: The nephogram of nail stress distribution.

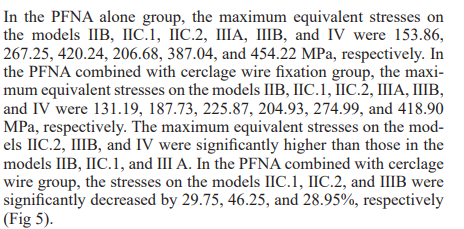

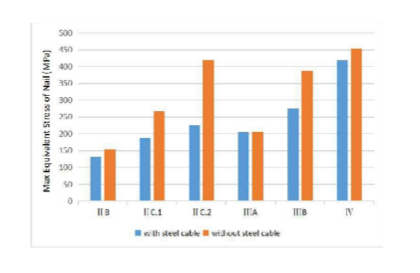

Figure 5: The max equivalent stress distribution of nails between groups

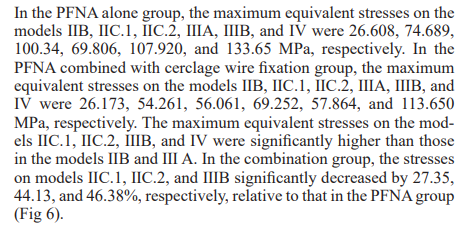

Equivalent Stress Distribution of the Distal Lock Screw The maximum equivalent stress was distributed above the nail-distal lock screw interface in the model â?¡B with cerclage wire, while it was distributed below the nail-distal lock screw interface in the other models (Photo 5).

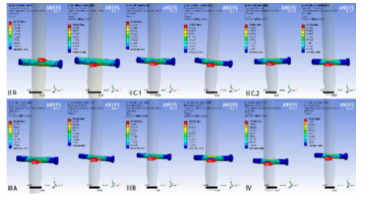

Photo 5: The nephogram of distal lock screw stress distribution

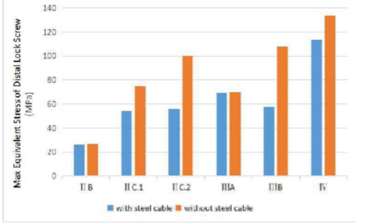

Figure 6: The max equivalent stress distribution of distal lock screw between groups.

Discussion

The fracture within the area 5-cm below the lower boundary of the lesser trochanter is called the subtrochanteric fracture of the femur. Subtrochanteric fractures account for approximately 5-20% of all proximal femoral fractures [35, 36]. Biologically, the subtrochanteric region is the junction of cancellous bone between the trochanter and the cortical bone of the femoral shaft, which is the transition area from a wide to narrow bone marrow cavity, where the distribution of the blood vessels is limited. In the biomechanical terms, the subtrochanteric region of the femur is a high stress concentration area that bears the highest tensile and compressive stresses in the human skeleton [37]. In complex subtrochanteric fracture of the femur, the proximal fragment of the fracture is in the flexion, abduction, and external rotational position owing to the traction of the medial gluteus minimus and the iliopsoas muscles, which usually results in varus deformity and displacement [38]. Strong muscle traction makes anatomic reduction difficult. As a result, implant failure occurs, further resulting in increased nonunion rate of the fracture [7]. Moreover, high compressive and tensile stresses contribute to the development of nonunions [39]. As most of the patients with osteoporotic subtrochanteric fractures are elderly, they cannot tolerate long-term bed rest. Therefore, appropriate postoperative exercise is extremely important. Hence, good fracture stability is undoubtedly the main factor for successful recovery [40].

The main internal fixation methods of subtrochanteric fracture include intramedullary fixation and external fixation. Intramedullary nailing is the main method for intramedullary fixation, while anatomical locking plate is used for external fixation. Intramedullary fixation is superior to extramedullary fixation in the biomechanical terms because central fixation reduces the bending moment, reduces the torsion force, and enhances the anti-rotation stability.

Intramedullary nail has been widely used in elderly patients with osteoporotic intertrochanteric and subtrochanteric fractures. For the intertrochanteric fractures, the intramedullary nail is easy to implant with fewer complications and the convenience of early weight-bearing allowance. The approach involving minimally invasive wire cerclage can support the medial cortex, increase the load tolerance, and avoid the varus displacement of proximal fragments or screw cutting out from the femoral head. Recently, several studies showed that wire cerclage can prevent fracture block displacement while enhancing the stability of intramedullary fixation [41]. As compared with extramedullary fixation,the intramedullary nail approach combined with steel wire cerclage results in lesser trauma and bears stress through the central medullary cavity, while reducing the bending moment, bearing lesser torsion, and showing good anti-rotation stability [36, 42-45].

In this study, we employed the CT data of a 70-year-old healthy volunteer in order to reconstruct the femoral cortex and cancellous bone. The material attribute was set to osteoporotic bone. The load of femoral head simulate the daily load of the hip. We aim to access protective effect of cerclage wire on the internal fixation and fracture stability by finite element analysis.

In this study, we demonstrated that, with an increase in the fracture comminution degree and the stability of fracture surface, the risk of PFNA blade cutting-out and distal locking nail breaking increased correspondingly. In the model IIB, the use of cerclage wire could slightly reduce the risk of sliding of the fracture surface and the spiral blade cutting-out. In the models â?¡C.1 and â?¡C.2, the use of cerclage wire could significantly reduce the risk of sliding of the fracture surface, spiral blade cutting-out, and the nail and distal lock screw fragmentation, but the effect was more significant in the model â?¡C.2. In the model â?¢B, the use of cerclage wire could significantly reduce the risk of sliding at the fracture surface, with the spiral blade cutting-out, and the nail and distal lock screw fragmentation. In the model â?£, the use of cerclage wire could slightly reduce the risk of sliding at the fracture surface, the spiral blade cutting-out, and the nail and distal lock screw fragmentation. In the models â?¡C.1, â?¡C.2, and â?¢B, the use of cerclage wire resulted in a good protective effect on the internal fixation and fracture stability. In the model â?¡B with cerclage wire, no significant protective effect was noted on the internal fixation and fracture stability. In the models â?¢B and â?£, the effect of cerclage wire was only to protect the movement of the fracture fragments.

There were some limitations. First, the subtrochanteric fractures examined in this study reflected a simplified model, which ignored the effects of muscles, ligaments, and joint capsules. Second, the hip joint is a multi-axial joint that can perform the actions of flexion and extension, abduction, and rotation. In the future, it will be necessary to conduct hip joint loading and torsion experiments from multiple perspectives. Third, the current model employs CT data of a volunteer, but the length and shape of the femur have individual differences; this issue necessitates the employment of a larger sample size. Fourth, it is necessary to combine the finite element method with cadaver experiments for a more definitive inference of the study reports.

Conclusion
